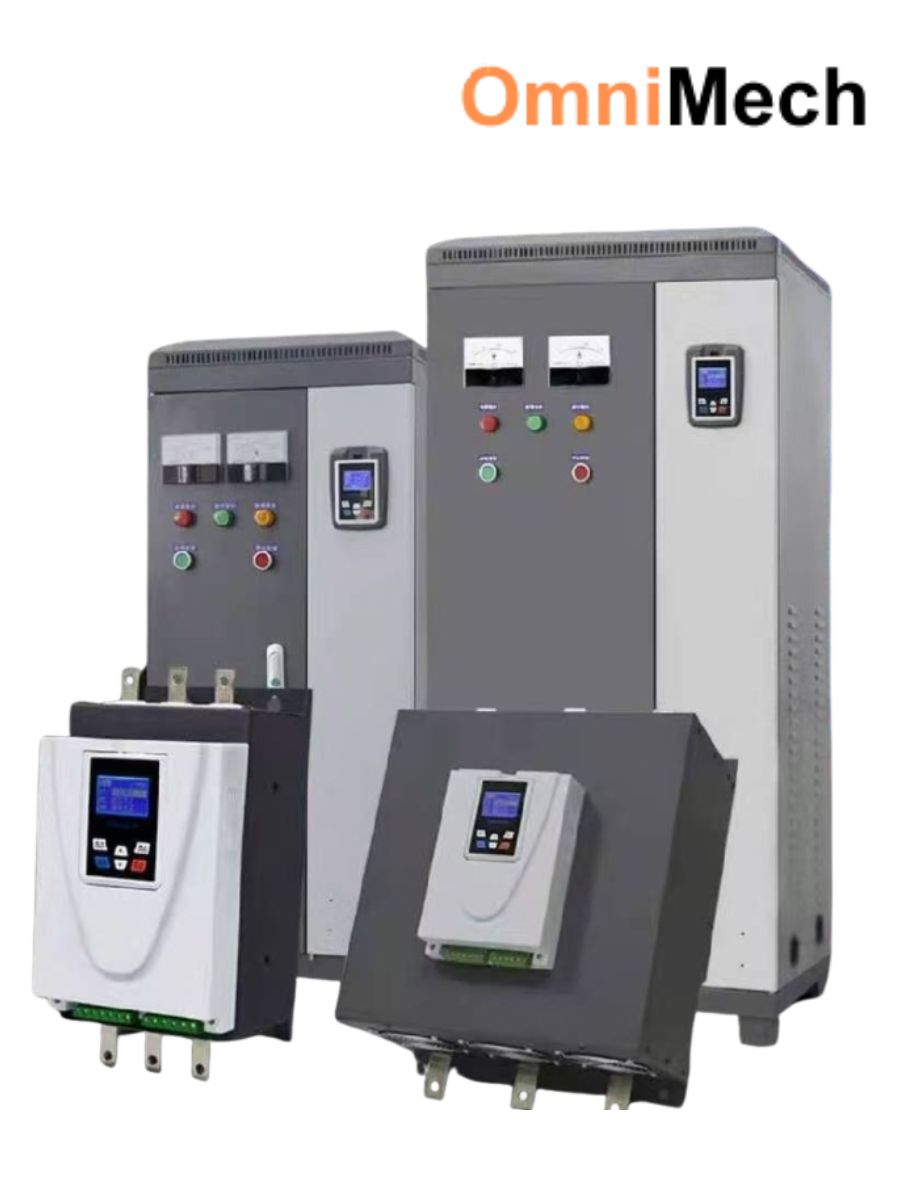

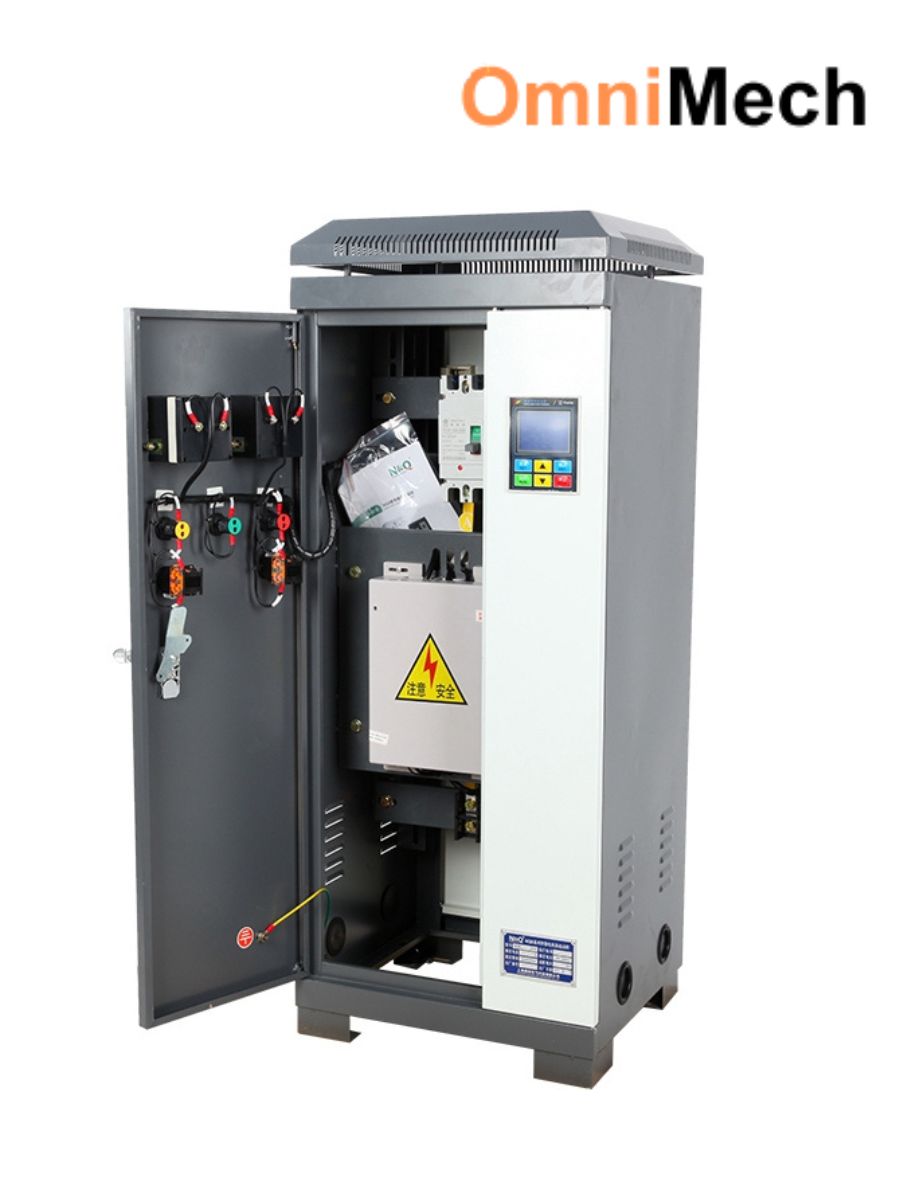

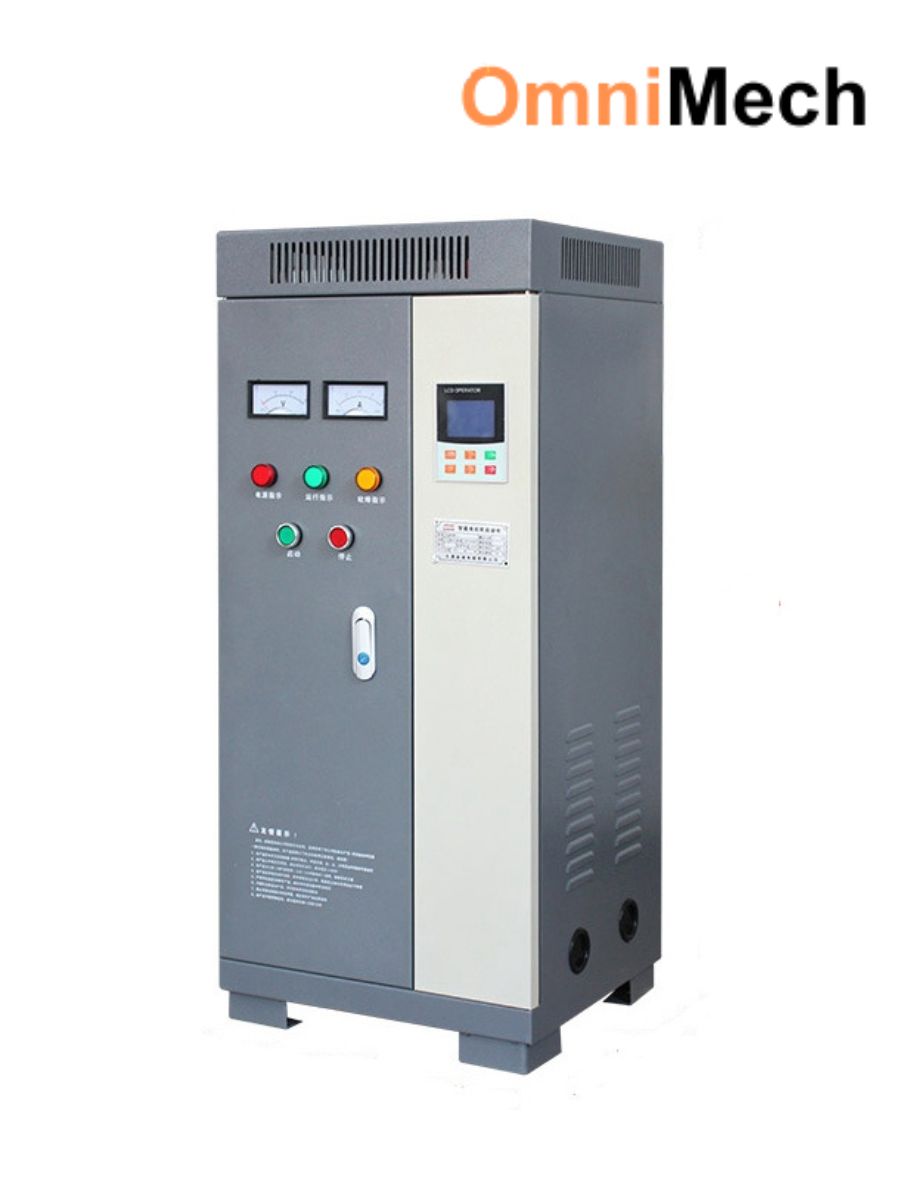

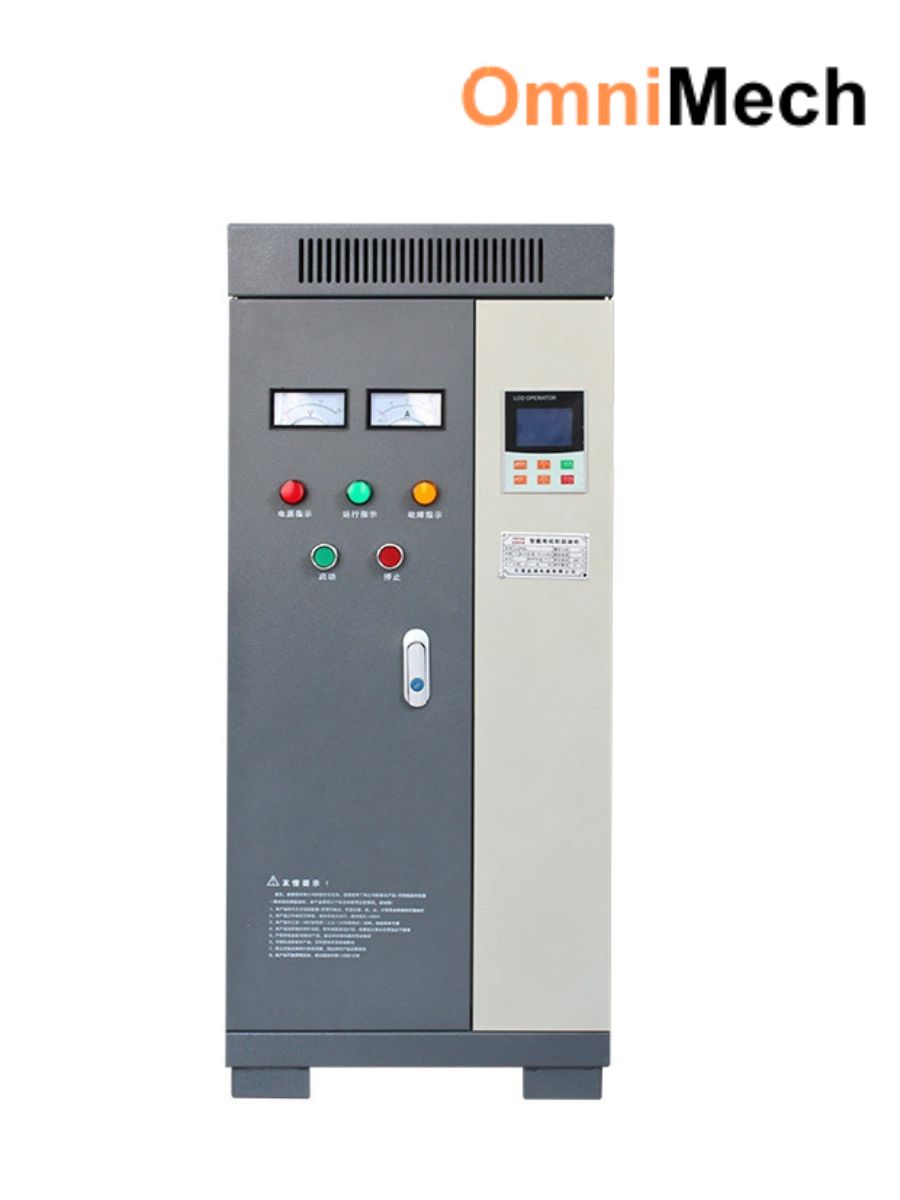

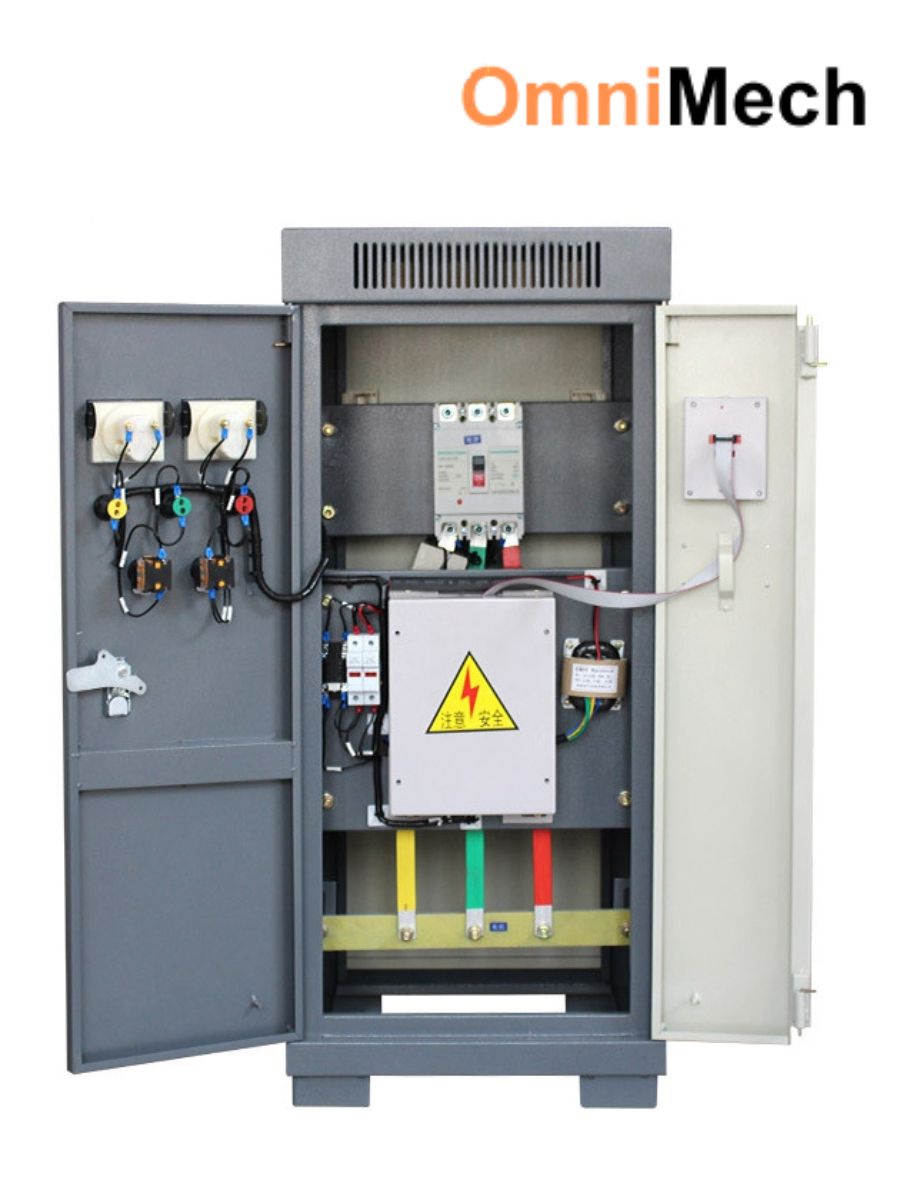

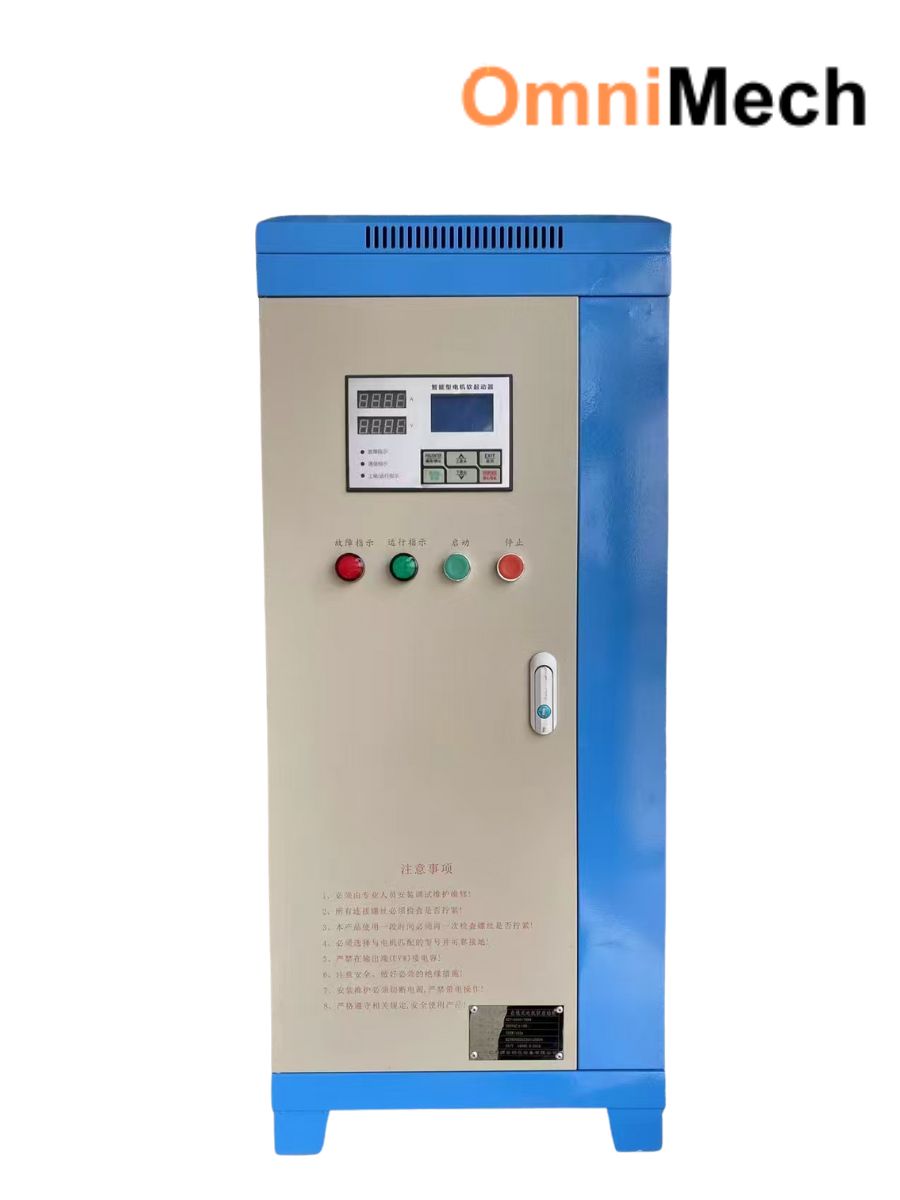

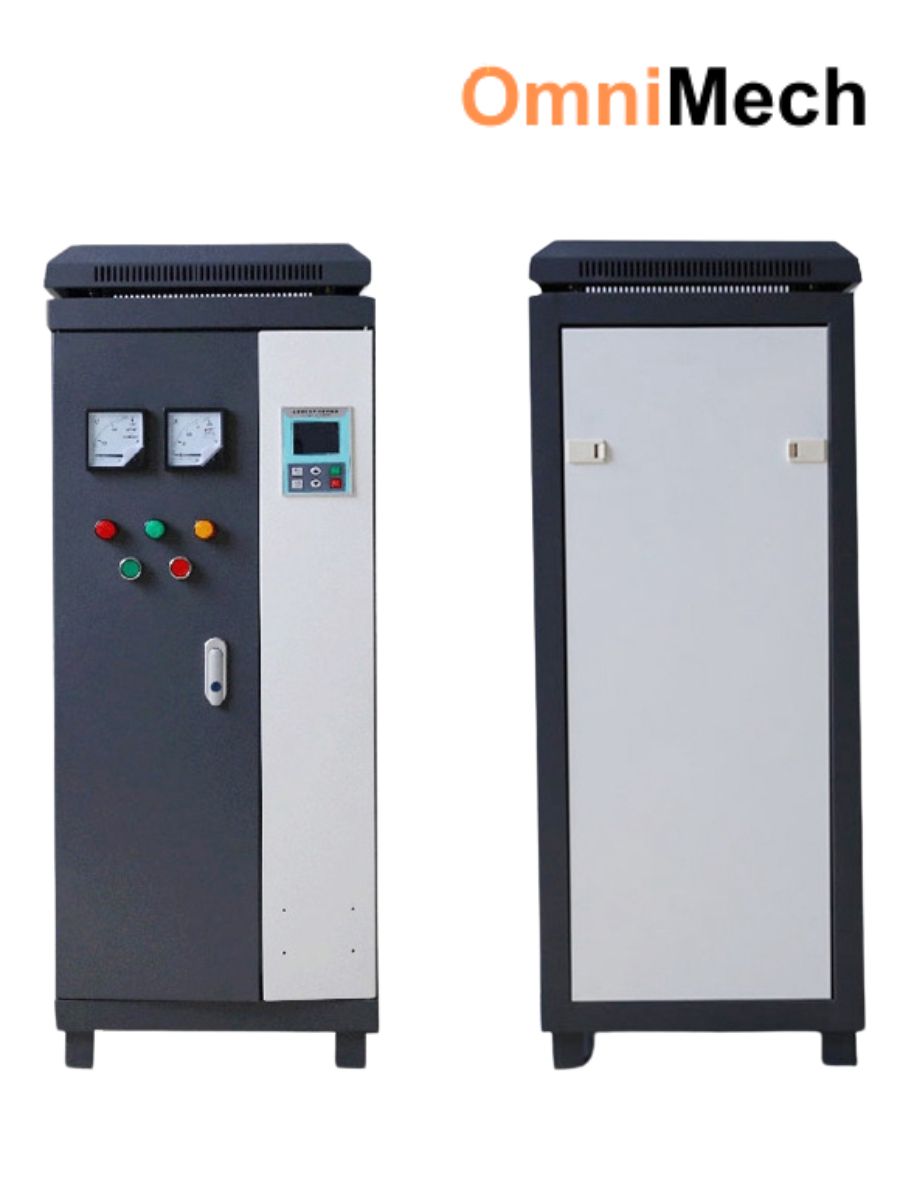

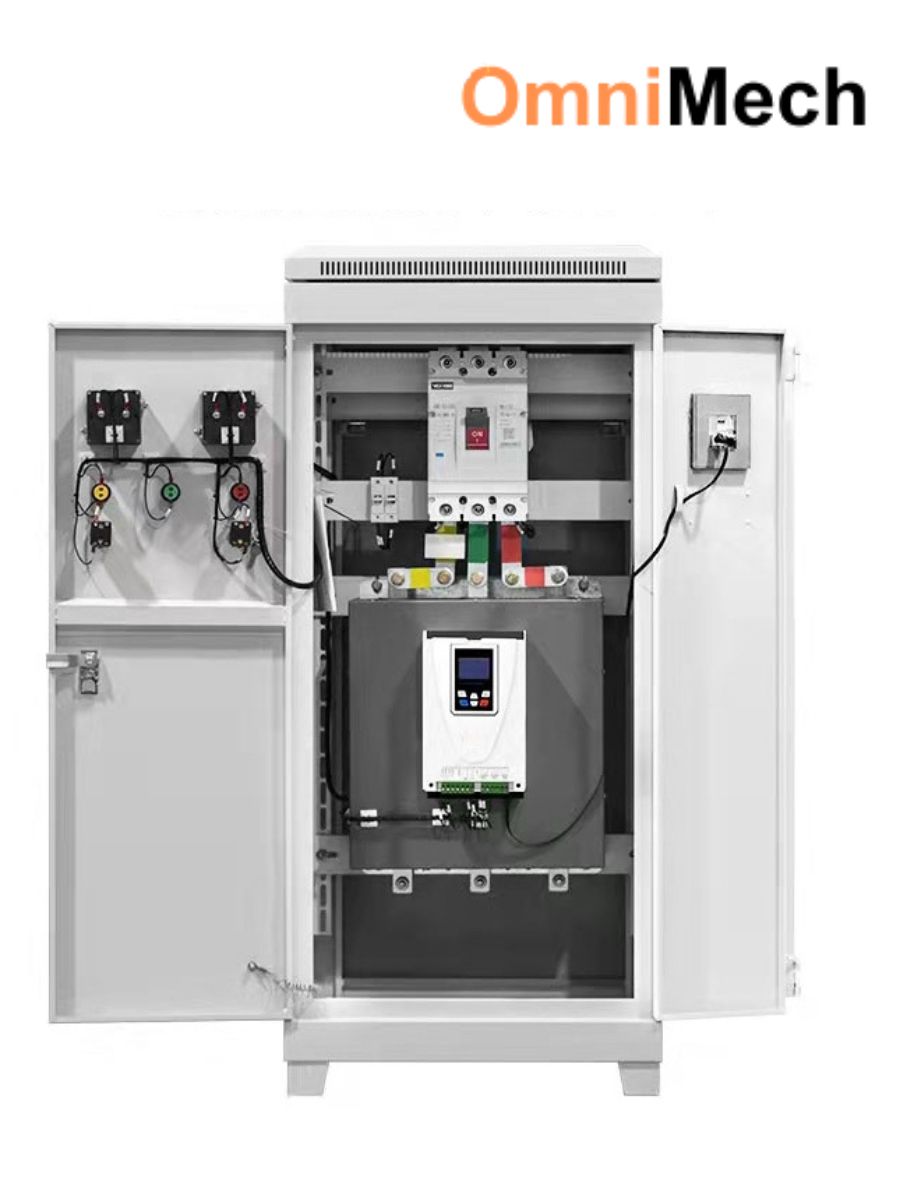

Online Soft Start Control Cabinet
Product Overview
The online soft starter cabinet uses three-phase parallel thyristors as voltage regulators, which are connected between the power supply and the motor stator. Such a circuit is a three-phase fully controlled bridge rectifier circuit. When using a soft starter to start the motor, the output voltage of the thyristor gradually increases, and the motor gradually accelerates until the thyristor is fully turned on, and the motor works on the mechanical characteristics of the rated voltage to achieve smooth start, reduce the starting current, and avoid starting overcurrent tripping. The online soft starter cabinet also provides a soft stop function. The soft stop is the opposite of the soft start process. The voltage gradually decreases and the speed drops to zero to avoid torque impact caused by free stop.
-
Three inputs and three outputs, no bypass AC contactor is required, the product price is cheaper and the maintenance cost is lower
-
It can adapt to reliable operation in harsh environments such as smoke, dust, dust, sand, etc.
-
Complete protection functions, reliable performance, long service life and high economic benefits
-
Widely used in the start-up process of transmission equipment, fans, pumps, compressors, crushers and other loads
-
This product complies with GB14048.6-2008 and other standards
-
Wide working voltage range, simple and convenient wiring
The main technical parameters:
-
Rated voltage: AC380V
-
Frequency: 50/60HZ
-
Applicable motor: squirrel-cage three-phase asynchronous motor
-
Starting frequency: when the motor starts with full load, no more than 4 times/hour, when no load or light load, it is recommended not to exceed 10 times/hour
-
Protection class: IP20
-
Cooling method: natural air cooling
-
Storage temperature: -25~70℃
We welcome global agents, distributors, retailers, and other partners to join us and work together to develop mutually beneficial business relationships. Our products have already been well received by customers in many countries and regions, and we look forward to expanding our reach even further.
The Online soft start control cabinet is a state - of - the - art electrical control device designed to revolutionize the way electrical motors start and operate. This cabinet is equipped with advanced technology that ensures a smooth and controlled startup process for motors, which significantly reduces mechanical stress and electrical inrush current.
One of the key features of the Online soft start control cabinet is its adjustable starting parameters. Users can easily customize the acceleration time, current limit, and other crucial settings according to the specific requirements of their motors. This flexibility allows for optimal performance and protection of the motor, extending its service life and reducing maintenance costs.
In addition to its adjustable features, the Online soft start control cabinet also comes with comprehensive protection functions. It can detect over - current, over - voltage, under - voltage, and phase loss conditions, and immediately take appropriate actions to safeguard the motor and associated equipment. This not only prevents damage to the motor but also enhances the overall safety of the electrical system.
The cabinet is built with high - quality materials and components, ensuring its reliability and durability even in harsh industrial environments. Its compact design and easy - to - install structure make it suitable for a wide range of applications, including pumps, fans, compressors, and conveyors.
Whether you are looking to upgrade your existing motor control system or install a new one, the Online soft start control cabinet is an ideal choice. With its advanced technology, adjustable features, and comprehensive protection functions, it provides a cost - effective and efficient solution for all your motor control needs.
