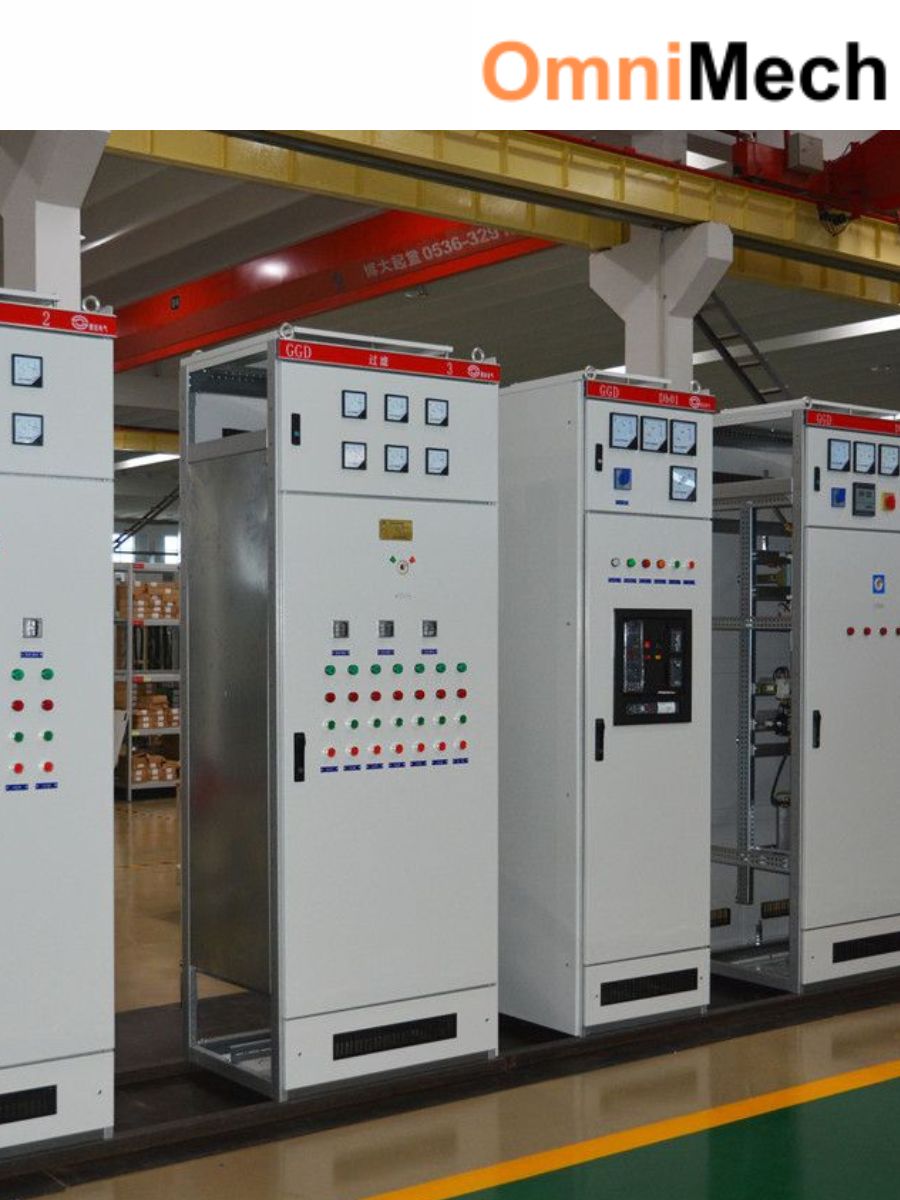

GGJ-low-voltage-reactive-power-compensation-device
Product Overview
The GGJ Low - voltage Capacitor Complete Switchgear is a remarkable and highly efficient electrical equipment designed for low - voltage power systems. This switchgear plays a crucial role in GGJ Low - voltage Capacitor Complete Switchgear applications by providing reliable and stable capacitor switching functions.
It is engineered with advanced technology to ensure optimal performance. The design of the GGJ Low - voltage Capacitor Complete Switchgear takes into account various factors such as safety, durability, and ease of maintenance. For instance, it has a well - structured enclosure that protects the internal components from external environmental factors like dust, moisture, and mechanical damage.
This switchgear is also equipped with intelligent control systems. These systems can precisely monitor and control the capacitor banks, enabling them to operate at the most efficient levels. The intelligent control not only improves the power factor of the electrical system but also reduces energy losses. By doing so, it helps industries and facilities save on electricity costs in the long run.
In addition, the GGJ Low - voltage Capacitor Complete Switchgear is suitable for a wide range of industries. Whether it’s in manufacturing plants, commercial buildings, or data centers, this switchgear can be customized to meet different power requirements.
Overall, the GGJ Low - voltage Capacitor Complete Switchgear is a top - notch solution for low - voltage capacitor switching needs. Its high - quality construction, intelligent control, and wide applicability make it an ideal choice for any project that requires efficient power management and capacitor control.

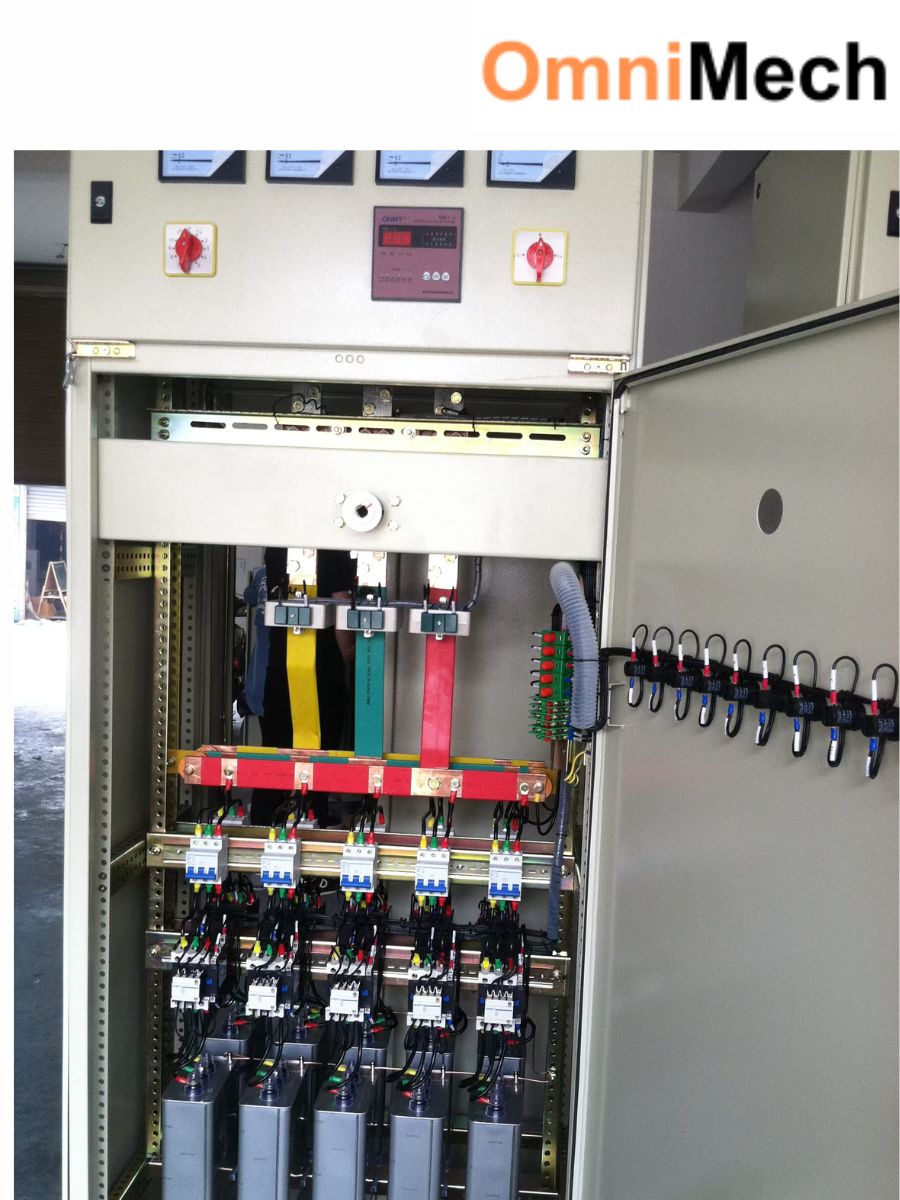

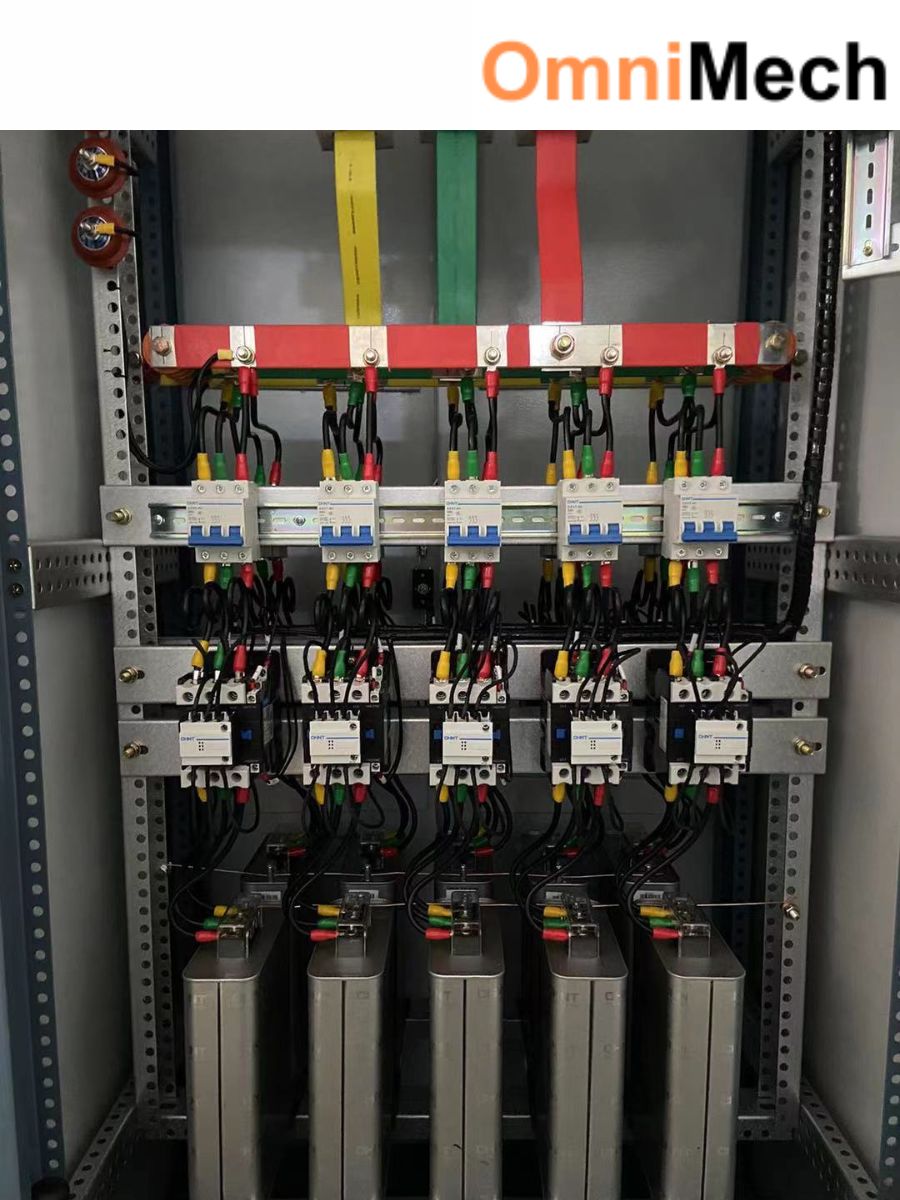

GGJ reactive power compensation device is used in the main circuit and branch circuits of the enterprise power system to improve the power factor and avoid the reactive power from the power system, thereby saving electricity costs. The capacitor automatic switching and cutting set device includes a multi-functional automatic power compensation controller, which has multiple functions such as automatic switching of capacitor banks, measurement and display of various power parameters, and output alarm signals. The whole set of automatic power factor improving capacitor device includes BKMJ dry-type capacitor bank, the main structure is directly constructed as each circuit contains capacitors, capacitor-specific SLFK intelligent low-voltage composite switches and high-performance fuses, which will make its maintenance very simple , under the conditions of current resistance allowed by cables or copper bars and switching switches, the capacity of the capacitor bank can be adjusted freely. For larger capacitor sets (more than 300KVAR), it can be divided into multiple cabinets and used in parallel, and each cabinet has its own independent protection system. The complete set of capacitors for low-voltage automatic power factor adjustment can be used for three-phase co-complementation, and can also be designed as a combination of co-complementation and separate compensation according to customer needs to meet various needs of customers.
The advanced intelligent low-voltage electronic composite switch is used as the switching element, which completely solves the surge problem when the capacitor is switched on. There is no worry of contact burnout, no heat dissipation, and no harmonic injection. It is safe and reliable.
① High precision: The data sampling measurement adopts true effective value, the measurement accuracy of voltage and current reaches 0.5 level, and the measurement accuracy of power factor and power energy reaches 1.0 level.
② Flexible group compensation method: The mixed compensation method of combining three-phase compensation and group compensation, fixed compensation and co-compensation can be set in groups through the control panel, and each group can set its compensation mode and control parameters.
③ Perfect protection functions: undervoltage protection, overvoltage protection, loss of voltage protection, overcurrent protection, phase loss protection, harmonic protection and other protection measures, with high reliability. The design is reasonable, the structure is simple, the use is convenient, the anti-interference ability is strong, and the technical indicators are in the leading position in China. The standard cabinet is suitable for various occasions and occupies a small space. Simple installation, no impact on production, unattended, maintenance-free.
Technical Parameters:
Rated voltage: 380VAC 3~; Rated insulation voltage: 660VAC 3~;
Rated frequency: 50HZ or 60HZ;
Compensation method: combination of three-phase compensation and single-phase compensation.
Compensation capacity: 420kvar~60kvar.
Compensation mode: cycle switching, coding switching, fuzzy control automatic switching.
Fastest response time: ≤20ms;
Cabinet height: 2000mm, 2200mm;
Width: 600, 800, 1000, 1200mm;
Thickness: 600, 800, 1000mm;
Protection class: IP30.
